Engine, Acrosport Tail, Centre Section Fuel Tank Wing Tips+ Engine

Members of the Springfield Flying Club removed the following parts from a damaged airplane, which had 50 hours Total Time. Many items are like new, some are damaged but repairable. Items can be purchased individually, in clusters, or with the entire inventory. To buy one or more of these parts as is, you can either:

• Pay the ‘Buy it Now’ price

• Make a reasonable offer

1. Place your order by emailing:    jill.oakes@ad.umanitoba.ca
2. Jill is collecting funds - made out to Gisele Bourrier

•  Engine – IO-0360 B1B AVCO Lycoming, Wide Deck. Push rod tubes, connecting rods, crank case, salvageable engine hardware and parts, chrome rocker arm covers, cylinders need to be checked for serviceability, about 50 hours on the engine, crankshaft bent,exhaust pipes crunched up into lower cylinders, ring gear needs to be checked, bent prop flange, approx 5" prop extension (needs to be checked), Fuel Servo Injector, for parts value– Bendix RSA - 5AD1     19745   /8      Part List # 2524287- 10. Engine was in muddy fresh water for approximately two hours.
•  BUY it NOW - $4000 $3000, SOLD

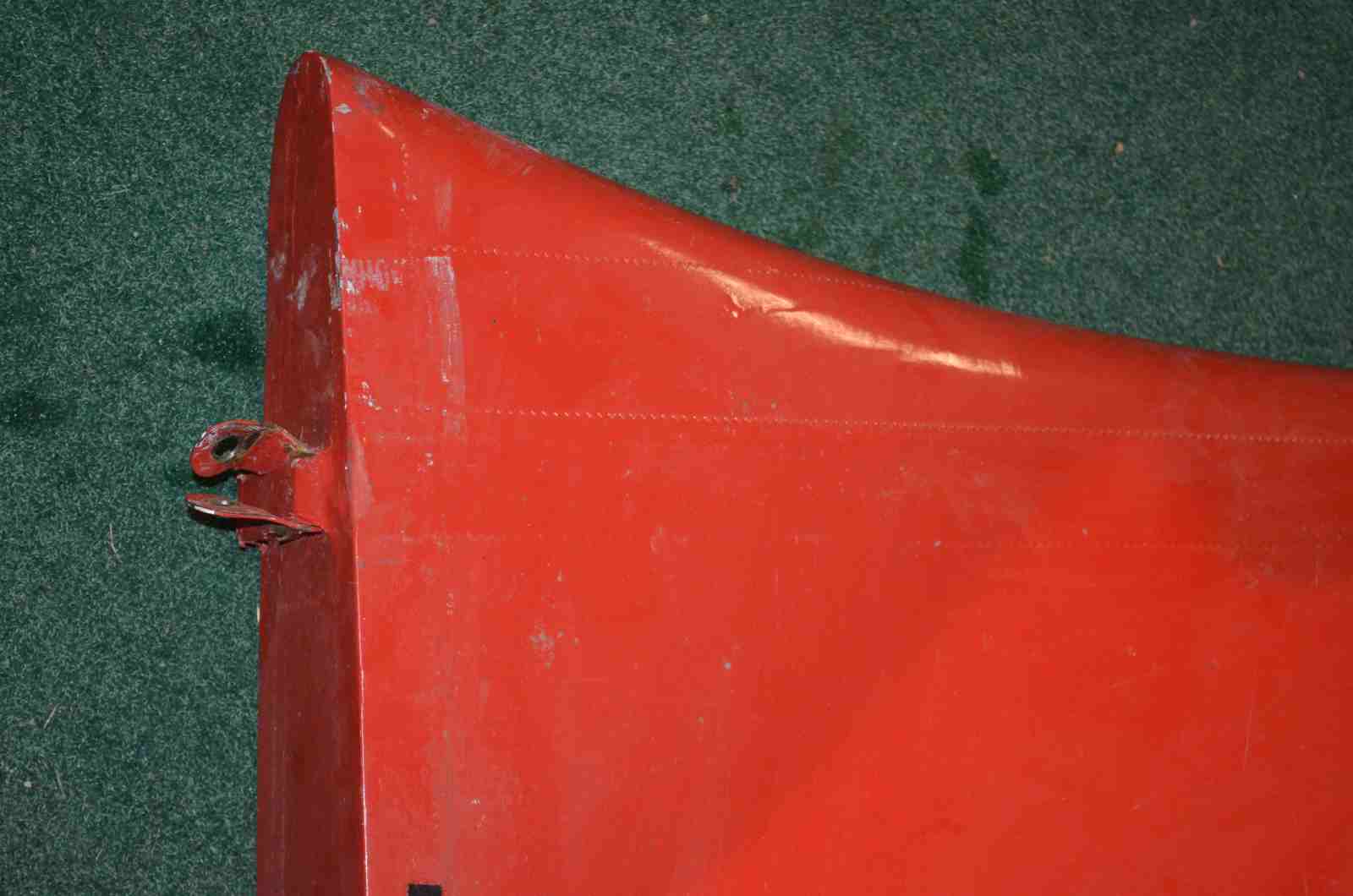

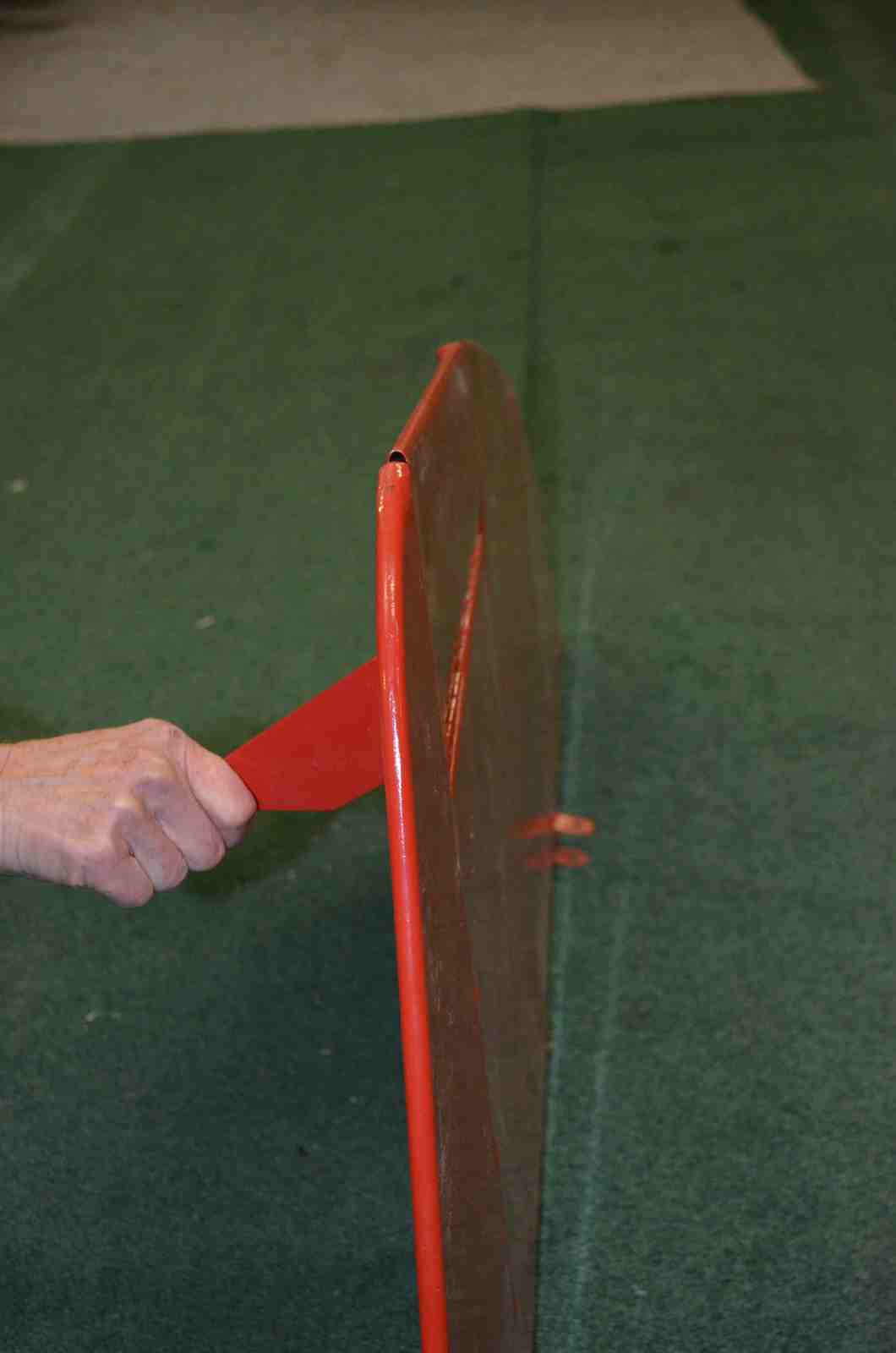

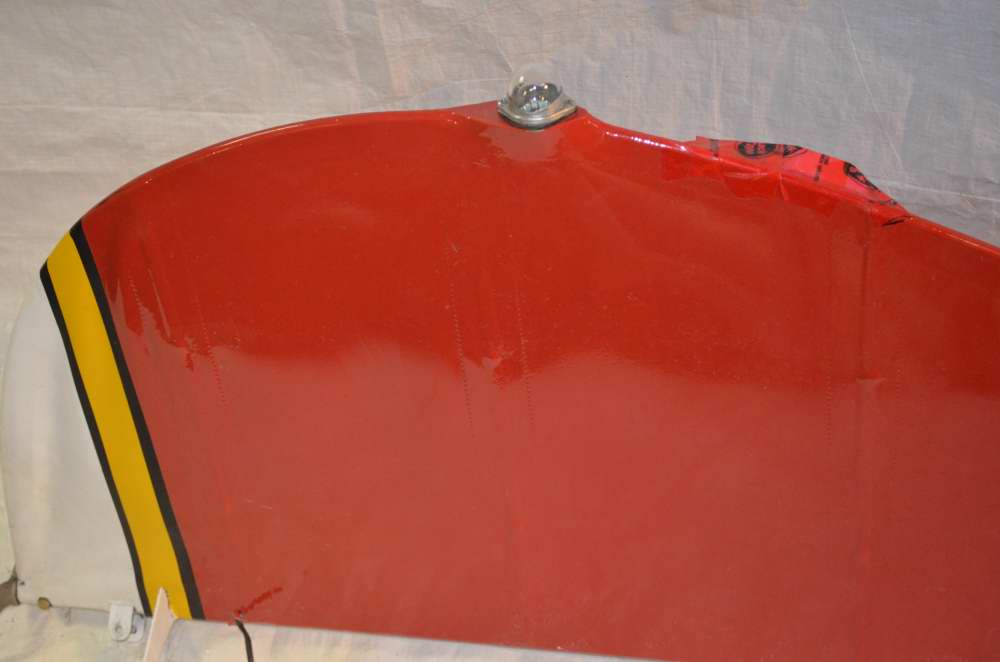

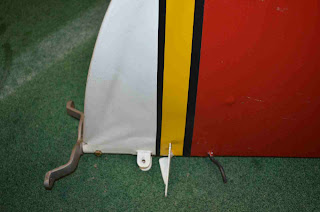

Aileron, Horizontal Stabilizer, Rudder, Vertical Stabilizer, some damage, AcroSport II tail feathers – BUY it NOW $500

•


Part # 2 Horizontal Stabilizer

Part #3 Rudder



 Part # 4 Elevators



Part Number 5 Vertical Stabilizer

Part Number 6 Fiberglass wing tips



Wing Tips – fiberglass, like new, includes nav lights  – BUY it NOW $600
M-513 written on inside of wing tips.
Coloured splotches in the photos are bits of fabric still adhering to the fiberglass.

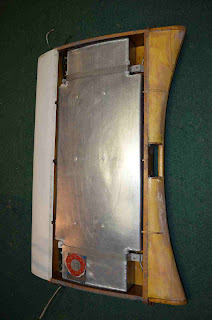

Part Number 7 Centre Section with Fuel Tank

 Weldable aluminum fuel tank fittings, Centre Section Wing Tank with flush-mounted fuel cap and fork ends, some damage on centre section – BUY it NOW $500

 Aluminium Leading Edge.

 Trailing edge laminated bow.

 Hand hold laminated bow.

 Includes fuel line fittings.

 End ribs.

 Flush mounted fuel cap.

 Fuel tank is constructed with three baffles positioned where the wooden ribs were.

The tank is padded with neoprene and clamped into position using straps.

The fuel tank and the centre section were beautifully constructed.

Luc St Mars, certified aircraft aluminium welder and owner/operator of AirFab welded the fuel tank.

 Maximum amount of fuel  is obtained by making the fuel tank extend right to the end ribs, cutting out an area to install the drag and anti-drag wires. The drag and anti-drag wires are suspended in air, passing through the tank in the centre of aluminium tubes welded to the tank.

 An electric fuel quantity sendor is attached to the fuel tank.

 The welding is also a work of art.

 Wiing mount flanges are distorted and flattened back.

Leading edge spar and plywood sheeting on base of centre section are splintered.

The following images are included in case it helps viewer see where the damaged areas are...where the fabric is wrinkled.

Canopy SOLD -  new, beautifully built, Plexi-glass is scratch free, excellent working condition, fits Acrosport-style aircraft - BUY it NOW $500

The canopy measures approximately 25" long, 16" high when the tracks are positioned 18" apart. I've taken a few photos below showing the tracks 24" apart (plexi is 14 1/2" high) and 23" apart (plexi is about 14 7/8" high)Tracks collapse in length to about 26" and extend to about 39". Measurements are approximate as its difficult to identify consistent reference points. The drawings for the turtle deck, which the canopy fits up to are enclosed here in case it helps you determine if this canopy can be adapted to your project. It is beautifully handcrafted and professionally finished.

Part Number 3

Part Number 2

Part Number 9

Aluminium Gascolator, screen and fitting BUY it NOW $50 (top half is photographed below) SOLD to Bob Stewart $50

Part Number 10 (left) and 9 (right)

Parking Brake Valve (black item on the left), fittings broken inside BUY it NOW $50

Usher Gascolator - top end (blue item on right) goes with gascolator in photo above.

Part Number 12

Electric Fuel Pump, damaged - offers

Part Number 13

Capacitor Fuel Level Sender goes with fuel gauge - BUY it NOW $50

  Assorted Clevis Forks and Ball Bearing type fittings – BUY it NOW $150  SOLD to Marshall Oct 126

Part Number15 (3 photos of same collection)

Two views of tail wheel assembly

Part Number 16

 Maule Tail Wheel assembly and leaf spring, older model – BUY it NOW $500WHOOPS wrong price, (it's only $340 new!) BUY it Now price revised $125 SOLD Barry Nagam

Part Number 17

Two Tires, Cleveland Wheels, + brakes (shown below) – 6 x 600 –  Cleveland Toe-style brake cylinders (2, one is damaged)  Model 10-E5  MFG 2-81? WT 46

BUY it NOW $100  SOLD with wheels, tires, brake mounts Oct 18

BUY it NOW $800

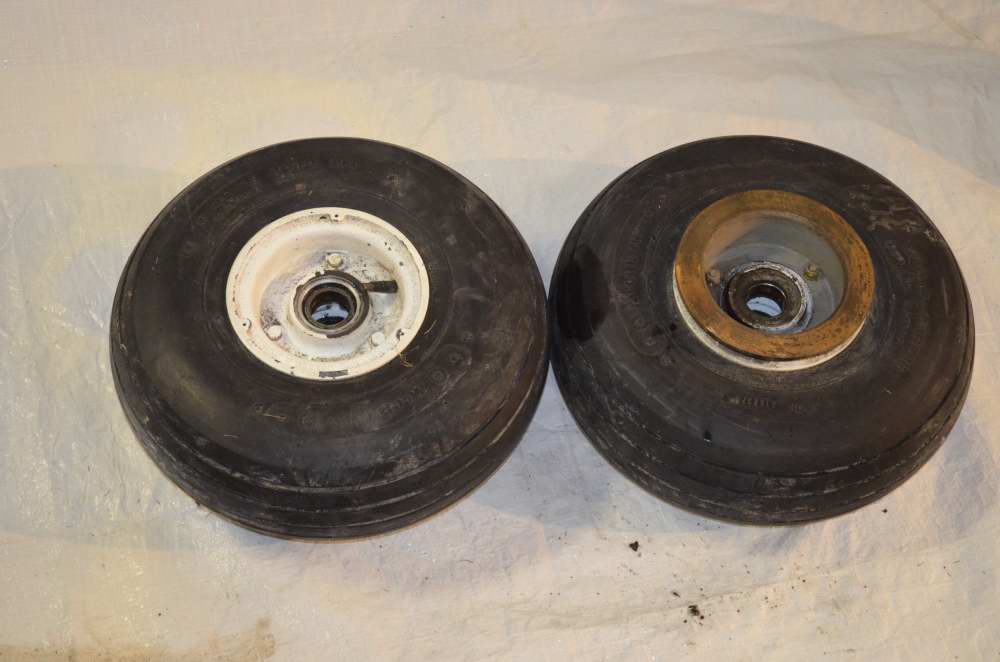

Two views of tires and wheels
$150 Steven Swallow
$200 Dennis Kowalyshyn
$800 SOLD Oct 18th





Part Number 18

Axel nuts and wheel pants plugs BUY it NOW $50

Part Number 19

•   Hatz biplane style landing gear coiled spring system (2) - BUY it NOW $325 SOLD to Russell Larsen Oct 15th

Part Number 20

Aluminium tubing (oil breather pipe) about 5 feet - like new PLUS
Aluminium seatbelt mount fits in instrument panel - like new BUY it NOW $50

Part Number 21

Throttle Quadrants (two), like new, with fittings - $150 SOLD Bill Dawson

Part Number 22

Trim Levers (two) and Hartwell Latches (aluminium closures), all like new, BUY it NOW $50

Part Number 23

Tachometer Drive Cable - about 8 ' long + right angle tach drive,  BUY it NOW $10 SOLD to Jim Mackey Oct 12th

Part Number 24

Nylon anti-friction blocks for control column - only one complete set, 3rd piece is made from wood - $15

Part Number 25

Control Stick Handle "NAF 1173-1 with trigger style "push to talk" button, which could be used for a variety of purposes. Fits over a 1" diameter control stick and has an aluminium adapter that fits over a 7/8" control stick – BUY it NOW $75
$50 Chris Lota highest bid so far

Part Number 26

One Black open cockpit cover, fold-able for easy storage  – BUY it NOW $100

Part Number27

 Radio antennae - BUY it NOW $50
$25 Steve Swallow highest bid to date

Part Number 28

Inspection Covers (7) - BUY it NOW $25
SOLD $25 Mark Crawford

Part Number 29

Two Solenoids (1 master + 1 starter solenoid ) - BUY it NOW $30

Part Number 30

Dyna-Focal Engine Mounts - 3 pairs (missing 1 pr) - $100

Part Number 31

Assorted AN nuts, bolts, washers, pins, aluminium tubing fittings, Aeroequip fittings, aluminium aileron horn, engine baffle connector – BUY it NOW $25 SOLD to Marshall Oct 12th

Part Number 32

Toe Brake Mount - Rudder Pedal, like new - BUY it NOW $10

Part Number 33


Inverted Oil system - all three items in photos -Inverted oil system container (has dint in the side so not sure if it is serviceable), includes AN tube fittings. BUY it NOW $50 SOLD Dennis Flamini Oct 12th

Part Number 34


E-Mags P Model + ignition-spark plug leads + spark plug adapters – BUY it NOW $1200
$300 Steven Swallow
$400 Ryan Southam
$550 Steve Swallow
$600 Bob Stewart
$1200 Steve Swallow SOLD


Part Number 35 E-Mag Gears sold separately BUY it NOW $75 each ($150)
$20 each Steven Swallow
$25 each Bob Stewart
$150 ($75 each) Steve Swallow SOLD

Part Number 36

Fuel Wobble Pump, like new, with fittings – BUY it NOW $300 SOLD to Dave.flying Oct 12th

 X-COM Transceiver radio – BUY it NOW Radio $800  SOLD Oct 8th Steve Swallow


Part Number 37
X-COM  Radio Remote head  - ideal for tandem aircraft BUY it NOW $350

REMOTE XCOM Radio

Instruments

Instruments - photos are showing instruments clustered just so they all fit into the camera view finder. You are welcome to make offers on individual instruments, and/or instruments displayed in any of the photographs.

 Instruments – compass (1 left) airspeed, altimeter, rpm, G meter, combo oil temp/press/CHT, and more (some may require servicing), plus bag of instrument screws and nuts, nylo air line fittings – BUY the remaining group NOW $300  SOLD Jim Oke + Jim Mackey

SOLD 1 Compass - $20 Jim Goold Oct 7th
SOLD 1 Compass - $30 - Matt Penner Oct 7th

Part Number 38 - sold individually or in any combintion (photos just clustered for ease of photographing items)

Part Number 39

•  Aluminium Tail Lift Assist Handles (2 + spring) – BUY it NOW $50 SOLD Jim Mackey

1
Part Number 40

 Oil Cooler with 4 bolts, Model SW , not tested, may need repair – BUY it NOW $100

$25 Steve Swallow highest bid to date Oct 15
